A black body is defined as an object that absorbs all external radiant energy and simultaneously radiates all its own energy.
Black body in the industry is mainly used in the field of infrared temperature measurement, the main product is black body furnace.
With the development of 3D printing technology, it has been transferred from the early product prototype and model mold manufacturing to the direct production and processing of products, and has been widely used in different fields such as engineering, industry, aviation, aerospace, automobile, electronics and medical treatment.
However, the printing temperature of 3D printer has a huge deviation due to the influence of room temperature in the printing process, which will lead to many adverse effects on the printing results.
To solve the problems existing in the existing technology, the development of a new kind of 3D printers internal chamber infrared constant temperature system, the use of infrared heating source to achieve to improve the overall object and the surrounding environment temperature, so the infrared temperature system need to introduce as standard blackbody furnace at the same time the work of real-time calibration of infrared heating source, thus improve print accuracy and the success rate of the object.
[Technical Indicator]
Model
DY-HTX-M
Temperature Range
Indoor Temperature+5-200℃
Control Mode
PID Automatic Control
Temperature Resolution
0.1℃
Radiating Surface
78mm*78mm
Emissivity
≥0.97±0.02
Temperature Stability
±0.2℃/10min
Temperature Uniformity
±0.2℃@100℃
Power Supply
220V AC
Dimension(L×W×H)
125mmX125Xmm160mm
Working environment
Temperature 0℃-30℃ Humidity ≤60%RH
Weight
≤2Kg
Note: other special requirements can be customized according to the needs of users

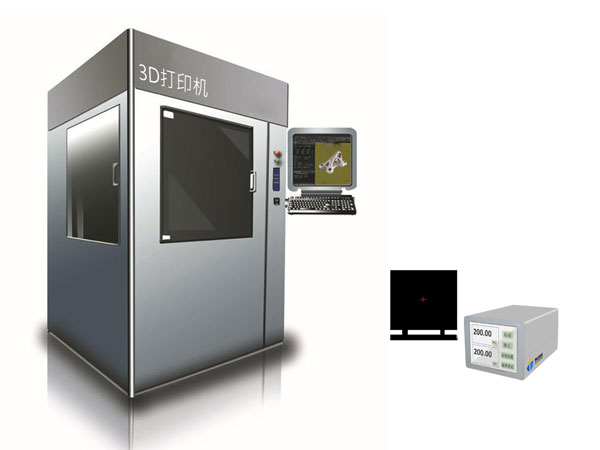

3D Printer Dedicated Infrared Temperature Measurement Blackbody Furnace 2020-12-7 This article was read 8467 Times
